Y-Pattern Valves
Overview
Y-pattern valves represent an alternative version of standard globe or check valves, with the yoke attached at an angle to the pipe. These are useful in flow-control settings where the form factor can be beneficial, and they provide all the functionality of a high-quality forged steel globe or check valve, including in high-pressure or high-temperature applications.

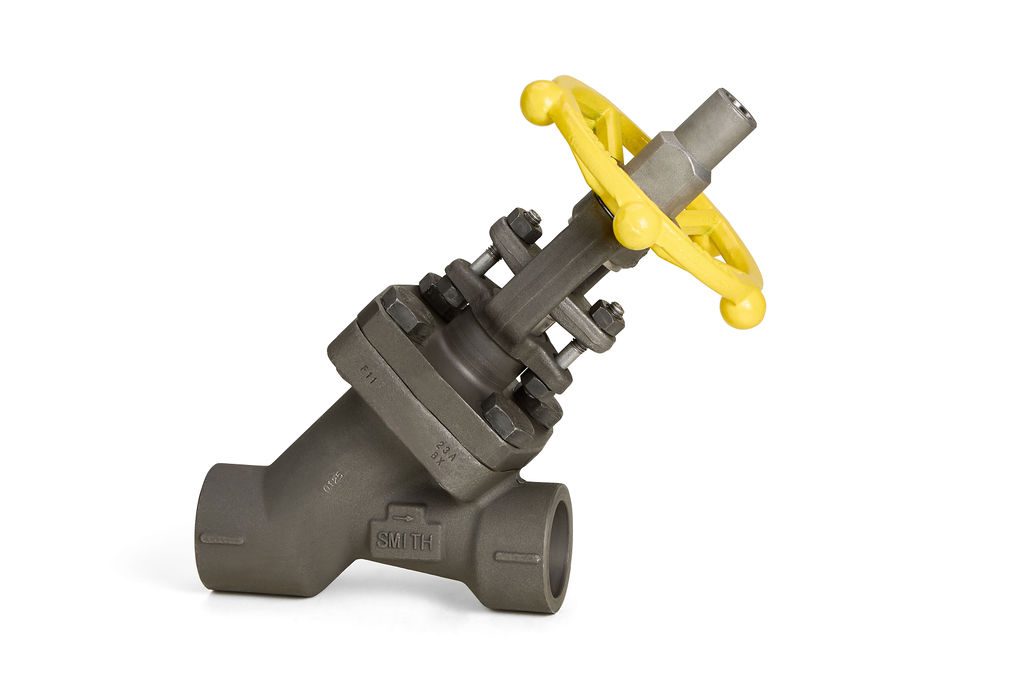

Smith Y-Pattern Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 800, 1500, 1690, 2690 & 4500. Available in bolted / welded bonnet or bonnetless design in conventional or full port with either threaded, socketweld or buttweld ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
YG80/YG87, YG15/YG17, Y162, Y262, Y452
Sizes
1/2” – 2”
Pressure Class
800, 1500, 1690, 2690, 4500
Bonnet Designs
- Bolted
- Welded
- Bonnetless
Design Specifications & Compliance
- API 598/602/624
- ASME B16.34
- NACE MR-0175
- NACE MR-0103
End Connections
- Threaded
- Socketweld
- Buttweld
Materials
Large scope of materials and trims available
The Smith Class 1500, 1690 and 2690 Check Valves feature conventional ports and bolted caps with either threaded or socket weld ends. There are 5 different designs including a ball check, spring ball check, piston check and spring piston check. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
YC80/YC87, YC15/YC17, YB80/YB87, YB15/YB17, YC16, YC26
Sizes
1/2” – 2”
Pressure Class
800, 1500, 1690, 2690, and 4500
Availability
- Ball Type
- Piston Type
Design Specifications & Compliance
- API 598/602
- ASME B16.34
- NACE MR-0175/0103
End Connections
- Threaded
- Socket Weld
Materials
Large scope of materials and trims available
Let’s Talk Valves
When you need a forged steel valve for your industrial project, second-best isn’t acceptable. That’s why you need to work with Smith Valves as we continue our legacy of quality.
