Globe Valves
Overview
Forged steel globe valves are versatile and reliable components for flow-control systems in high-pressure environments like oil and gas, petrochemical, and chemical plants. These valves are designed to allow gradations of flow control while also providing a complete shut-off when in the closed position and are strong enough to handle high-pressure and high-temperature scenarios.

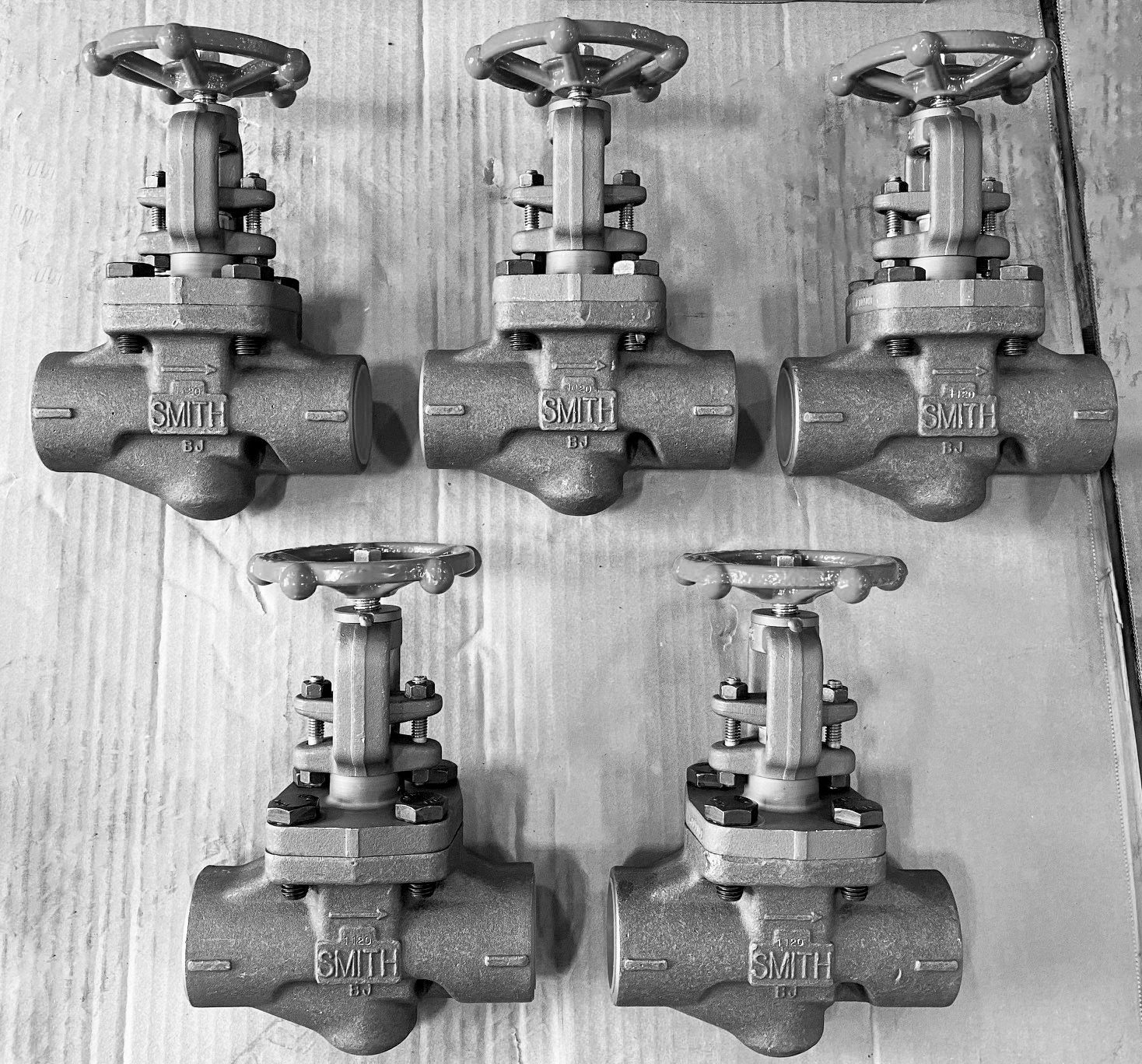

Smith Standard Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-1500 in conventional port with threaded, socketweld, buttweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
0G80/0G87, G150/G157, 0G81, 0G83, 0G86, G895
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800, 1500
Design Specifications & Compliance
API 591/598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
- Threaded
- Socketweld
- Buttweld
- Flanged
Materials
Large scope of materials and trims available
Smith Y-Pattern Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 800, 1500, 1690, 2690 & 4500. Available in bolted / welded bonnet or bonnetless design in conventional or full port with either threaded, socketweld or buttweld ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
YG80/YG87, YG15/YG17, Y162, Y262, Y452
Sizes
1/2” – 2”
Pressure Class
800, 1500, 1690, 2690, 4500
Bonnet Designs
- Bolted
- Welded
- Bonnetless
Design Specifications & Compliance
API 598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
- Threaded
- Socketweld
- Buttweld
Materials
Large scope of materials and trims available
Smith Cryogenic Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-600 and 800 in conventional port with threaded, socketweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
CG80/CG87, CG81, CG83, CG86
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800
Design Specifications & Compliance
API 598/602
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
- Threaded
- Socketweld
- Flanged
Materials
Large scope of materials and trims available
Smith BG80 / BG87 Bellow Seal Gate Valve features an outside stem and yoke (OS&Y), bolted / welded bonnet and conventional port with either threaded, socketweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
BG80, BG87, BG81, BG83, BG86
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800
Design Specifications & Compliance
API 598/602/624
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
- Threaded
- Socketweld
- Flanged
- Buttweld
Bonnet Designs
- Bolted
- Welded
Materials
Large scope of materials and trims available
