Cryogenic Valves
Overview

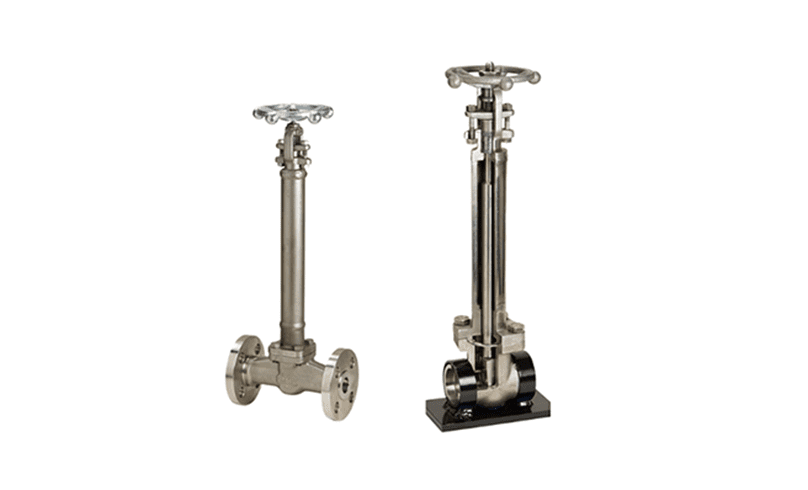

Forged steel cryogenic valves, available as either gate or globe valves, are specially designed to handle the extreme temperatures associated with cryogenic standards. These flow-control solutions feature an outside stem & yoke (OS&Y). As with standard valves, gate valve models are best suited for flow-control applications that require toggling between open and closed positions, while globe valves accommodate more precise flow regulation.
Smith Cryogenic Gate Valves feature an outside stem and yoke (OS&Y), are Class 150-1500 rated with conventional ports and either threaded, socketweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
C800, C870, C815, C830, C860, CT15
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800, 1500
Design Specifications & Compliance
- API 598/602
- ASME B16.34
- NACE MR-0175
- NACE MR-0103
End Connections
- Threaded
- Socket Weld
- Flanged
Bonnet Designs
- Bolted
- Welded
Materials
Large scope of materials and trims available
Smith Cryogenic Globe Valves feature an outside stem and yoke (OS&Y), and are available in Class 150-800 in conventional port with threaded, socketweld or RF ends. All are manufactured in accordance with API 602 and ASME B16.34 standards.
Styles
CG80/CG87, CG81, CG83, CG86
Sizes
1/2” – 2”
Pressure Class
150, 300, 600, 800
Design Specifications & Compliance
- API 598/602
- ASME B16.34
- NACE MR-0175
- NACE MR-0103
End Connections
- Threaded
- Socket Weld
- Flanged
Materials
Large scope of materials and trims available
