HANDWHEEL INDICATORS

Each handwheel is powder coated to indicate the body-bonnet material or special packing for gate & globe valves.

BLUE
ASTM A105
Carbon Steel

GREEN
ASTM 182 F9
9 Cr, 1 Mo

ORANGE
ASTM A350 LF2
Low Temp.

RED
Teflon Packing Gaskets or Seals
500F / 250C Max Temp.

PURPLE
Monel

PINK
F20 (Alloy 20)

SILVER
ASTM A182 F316 (L)

YELLOW
ASTM A182 F11
1 1/4 Cr, 1/2 Mo

WHITE
ASTM 182 F5
5 Cr, 1/2 Mo

BROWN
ASTM A182 F22
2 1/2 Cr, 1Mo

Installation, Operation & Maintenance Manuals

LINE SHEET

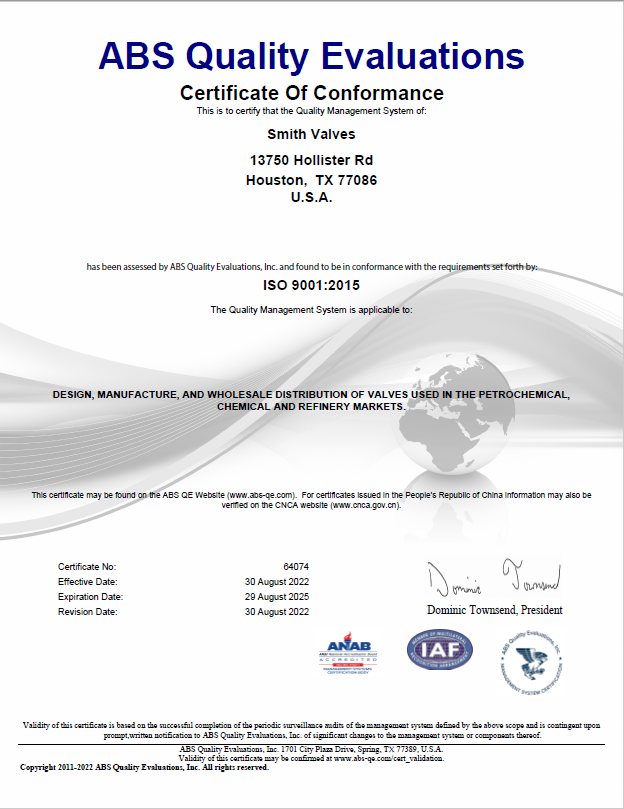

Certifications
